| 加工定制：是 | 品牌：Futek | 型号：LTH500-3000lb |
| 种类：湿度 | 制作工艺：集成 | 输出信号：模拟型 |
| 材料：金属 | 材料物理性质：导体 | 材料晶体结构：单晶 |
| 防护等级：IP68 | 线性度：52 | 迟滞：63 |
| 重复性：45 | 灵敏度：85 | 漂移：96 |
| 分辨率：41 |
美国Futek称重传感器
LTH500-3000lb
深圳市诗拓浦仪器仪表有限公司 陈先生 18026927816
美国传感器技术公司成立于1997年1月9日，由李察·塔斯克，迈克尔P.埃尔德和karmjit S. Sidhu，为发展MEMS（微电子机械结构的目的）与他们的专有Krystal Bond?技术产品压力传感器。它生产的压力传感器及相关产品在其安装的橄榄，新泽西美国设施，支持客户的快速周转和质量工具。
其技术的动力学允许其压力传感元件被封装在几乎***数量的配置随着提供毫伏输出的压力传感器，压力传感器，压力变送器。产品可以提供从我们的标准目录或修改为一个半定制或定制的工业生产应用程序包。随着第三方认证和认证的广泛选择，产品在危险的位置环境中得到广泛的信任和使用。
质量方针声明
美国传感器技术公司将满足或超越客户的期望，质量，交货和性能。我们将符合适用的法规要求。我们致力于不断发展、改进和加强我们的流程、产品和人员。
AST生产压力传感器产品及相关物品的*** 9001:2008质量认证体系下。

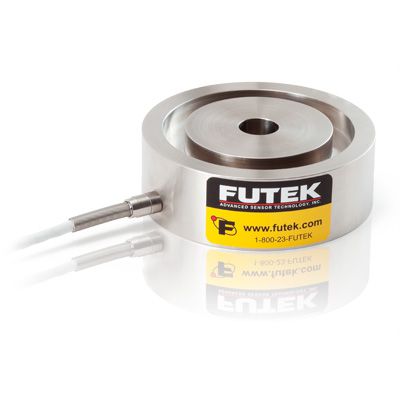

美国Futek称重传感器LTH500-3000lb
TLRM200
he Miniature S Beam Load Cell (MaleThread) has become one of the signature products in the FUTEK LoadCell Series. The perfect mixture of size, accuracy and of course the assuranceof an overload protection feature makes this one of our most sought aftermodels. Regardless of what capacity you chose, the product size remainsconstant with a height of only 1.67”, making it a great selection where tightspace is a challenge. The Standard LRM200 Miniature S Beam Load Cell (MaleThread) model comes in 2024 Aluminum construction (10 gram - 10 lb) and 17-4Stainless Steel (25 lbs – 100lbs), with a 5 ft 29 AWG 4 conductor shieldedsilicone cable.
With all of its design features the MiniatureS Beam Load Cell (Male Thread) has a high accuracy with a Nonlinearityof ±0.1%, deflection of 0.005” nominal and an operating temperature of -60° Fto 200° F. This s beam Load Cell can be modified or customized to meet yourrequirements and most capacities are in our inventory, making them availablefor 24 hour shipping. Similar to our entire Load Cell product line this modelis manufactured in the US and uses metal foil strain gauge technology. Pleaserefer to LSB200 for female/female option or lower profile version.
美国Futek称重传感器LTH500-3000lb美国Futek称重传感器LTH500-3000lb美国Futek称重传感器LTH500-3000lb美国Futek称重传感器LTH500-3000lb
ProductHighlights:
Compact sized s-beam
Available in both Aluminum or Stainless Steel
External Matched output option available
Built In Overload Protection
In Both Tension & Compression
Utilizes Metal Foil Strain Gauge Technology
Weight: 0.5 oz (aluminum) / 1.1 oz (Steel)
NAME | MIN | TYP | MAX | UNIT |
CHANNEL 1 | ||||
Compensated Temperature (???) | 60 |
| 160 | F |
Excitation (???) | 1 |
| 10 | Vdc |
Hysteresis (???) | -0.1 |
| 0.1 | % of R.O. |
Input Resistance |
| 350 |
| Ohms nom. |
Nonlinearity (???) | -0.1 |
| 0.1 | % of R.O. |
Nonrepeatability (???) | -0.05 |
| 0.05 | % of R.O. |
Operating Temperature (???) | -60 |
| 200 | F |
Output Resistance |
| 350 |
| Ohms nom. |
Safe Overload (???) |
|
| 1000 | % of R.O. |
Temperature Shift Span (???) | -0.02 |
| 0.02 | % of Load/F |
Temperature Shift Zero (???) | -0.1 |
| 0.1 | % of R.O./F |
Zero Balance (???) | -3 |
| 3 | % of R.O. |
Capacity |
|
| 100 | lbs |
Rated Output (???) |
| 2 |
| mV/V nom. (???) |
Calibration Excitation |
| 10 |
| Vdc |
