| 加工定制：是 | 品牌：Futek | 型号：LTH400-5000lb |
| 种类：湿度 | 制作工艺：集成 | 输出信号：模拟型 |
| 材料：金属 | 材料物理性质：导体 | 材料晶体结构：单晶 |
| 防护等级：IP68 | 线性度：5 | 迟滞：45 |
| 重复性：63 | 灵敏度：85 | 漂移：74 |
| 分辨率：66 |

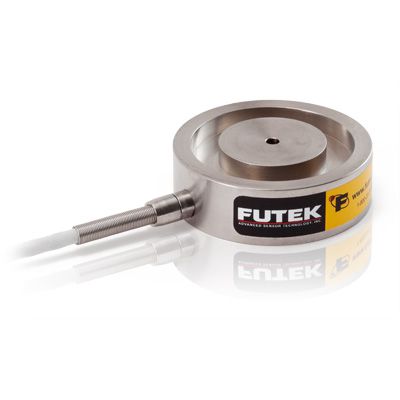

美国Futek称重传感器
LTH400-5000lb
深圳市诗拓浦仪器仪表有限公司 陈先生 18026927816
美国Futek称重传感器LTH400-5000lb
LSB200
The Miniature SBeam Load Cell LSB200 is now offered with FUTEK’s No Risk LifetimeWarranty due to its dynamic functionalities and miniature size. This MiniatureS-Beam Load Cell has become one of the signature products in the FUTEK LoadCell Series and is capable of servicing numerous applications and is usedindustry wide. One industry the LSB200 is often used in is the Medical Industrywhere it has been commonly used in Medical Bag Weighing Applications as well asautomated feedback control and inline processing applications. This productoffers a perfect mixture of size, accuracy and the assurance of an overloadprotection feature making this one of our most sought after models. With aheight of only 0.75”, the LSB200 Miniature S Beam Load Cell is a greatselection where tight environments or space is a challenge. LSB200 S-Beam Jr.Load Cell is also available with a brand new USB Digital Interface with 16 bitsresolution. PLEASE NOTE, THE USB DIGITAL INTERFACE/KIT MUST BE ADDED ON DURINGTHE PRODUCT CONFIGURATION.
DIMENSION | VALUE |
Width (in) | 0.27 |
Height (in) | 0.75 |
Length (in) | 0.69 |
Weight (oz) | 0.3 |
NAME | MIN | TYP | MAX | UNIT |
CHANNEL 1 | ||||
Compensated Temperature (???) | 60 |
| 160 | F |
Excitation (???) | 1 |
| 10 | Vdc |
Hysteresis (???) | -0.1 |
| 0.1 | % of R.O. |
Input Resistance |
| 350 |
| Ohms nom. |
Insulation Resistance | 500 |
|
| Mohms @ 50 Vdc |
Nonlinearity (???) | -0.1 |
| 0.1 | % of R.O. |
Nonrepeatability (???) | -0.05 |
| 0.05 | % of R.O. |
Operating Temperature (???) | -60 |
| 160 | F |
Output Resistance |
| 350 |
| Ohms nom. |
Safe Overload (???) |
|
| 1000 | % of R.O. |
Temperature Shift Span (???) | -0.02 |
| 0.02 | % of Load/F |
Temperature Shift Zero (???) | -0.01 |
| 0.01 | % of R.O./F |
Zero Balance (???) | -3 |
| 3 | % of R.O. |
Capacity |
|
| 1 | lbs |
Rated Output (???) |
| 2 |
| mV/V nom. (???) |
Calibration Excitation |
| 5 |
| Vdc |
