| 加工定制：是 | 品牌：Futek | 型号：LRF350-150lb |
| 种类：湿度 | 制作工艺：集成 | 输出信号：模拟型 |
| 材料：金属 | 材料物理性质：导体 | 材料晶体结构：单晶 |
| 防护等级：IP68 | 线性度：45 | 迟滞：21 |
| 重复性：56 | 灵敏度：82 | 漂移：75 |
| 分辨率：75 |

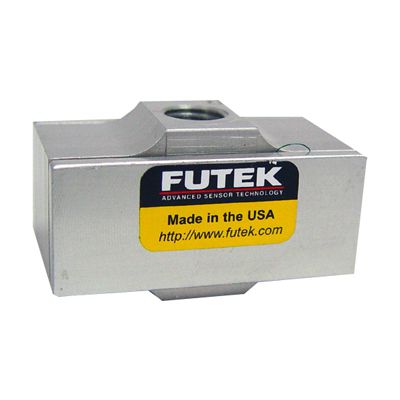

美国Futek称重传感器LRF350-150lb
深圳市诗拓浦仪器仪表有限公司 陈先生 18026927816
美国Futek称重传感器LRF350-150lb
he Miniature S Beam Load Cell (MaleThread) has become one of the signature products in the FUTEK LoadCell Series. The perfect mixture of size, accuracy and of course the assuranceof an overload protection feature makes this one of our most sought aftermodels. Regardless of what capacity you chose, the product size remainsconstant with a height of only 1.67”, making it a great selection where tightspace is a challenge. The Standard LRM200 Miniature S Beam Load Cell (MaleThread) model comes in 2024 Aluminum construction (10 gram - 10 lb) and 17-4Stainless Steel (25 lbs – 100lbs), with a 5 ft 29 AWG 4 conductor shieldedsilicone cable.
With all of its design features the MiniatureS Beam Load Cell (Male Thread) has a high accuracy with a Nonlinearityof ±0.1%, deflection of 0.005” nominal and an operating temperature of -60° Fto 200° F. This s beam Load Cell can be modified or customized to meet yourrequirements and most capacities are in our inventory, making them availablefor 24 hour shipping. Similar to our entire Load Cell product line this modelis manufactured in the US and uses metal foil strain gauge technology. Pleaserefer to LSB200 for female/female option or lower profile version.
ProductHighlights:
Compact sized s-beam
Available in both Aluminum or Stainless Steel
External Matched output option available
Built In Overload Protection
In Both Tension & Compression
Utilizes Metal Foil Strain Gauge Technology
Weight: 0.5 oz (aluminum) / 1.1 oz (Steel)
NAME | MIN | TYP | MAX | UNIT |
CHANNEL 1 | ||||
Compensated Temperature (???) | 60 |
| 160 | F |
Excitation (???) | 1 |
| 10 | Vdc |
Hysteresis (???) | -0.1 |
| 0.1 | % of R.O. |
Input Resistance |
| 350 |
| Ohms nom. |
Nonlinearity (???) | -0.1 |
| 0.1 | % of R.O. |
Nonrepeatability (???) | -0.05 |
| 0.05 | % of R.O. |
Operating Temperature (???) | -60 |
| 200 | F |
Output Resistance |
| 350 |
| Ohms nom. |
Safe Overload (???) |
|
| 1000 | % of R.O. |
Temperature Shift Span (???) | -0.02 |
| 0.02 | % of Load/F |
Temperature Shift Zero (???) | -0.1 |
| 0.1 | % of R.O./F |
Zero Balance (???) | -3 |
| 3 | % of R.O. |
Capacity |
|
| 100 | lbs |
Rated Output (???) |
| 2 |
| mV/V nom. (???) |
Calibration Excitation |
| 10 |
| Vdc |
